📋 Basic Specification
Processing Object
Mixed Feed
Technics
Crushing-before-Mixing
Mill Type
Ring Die Pelleter
Material
X46cr13 Stainless Steel
Compression Ratio
1:6-1:11
📦 Packaging & Delivery
Package Size
100.00cm * 100.00cm * 50.00cm
Transport Package
Wooden Case
🛠️ Product Overview

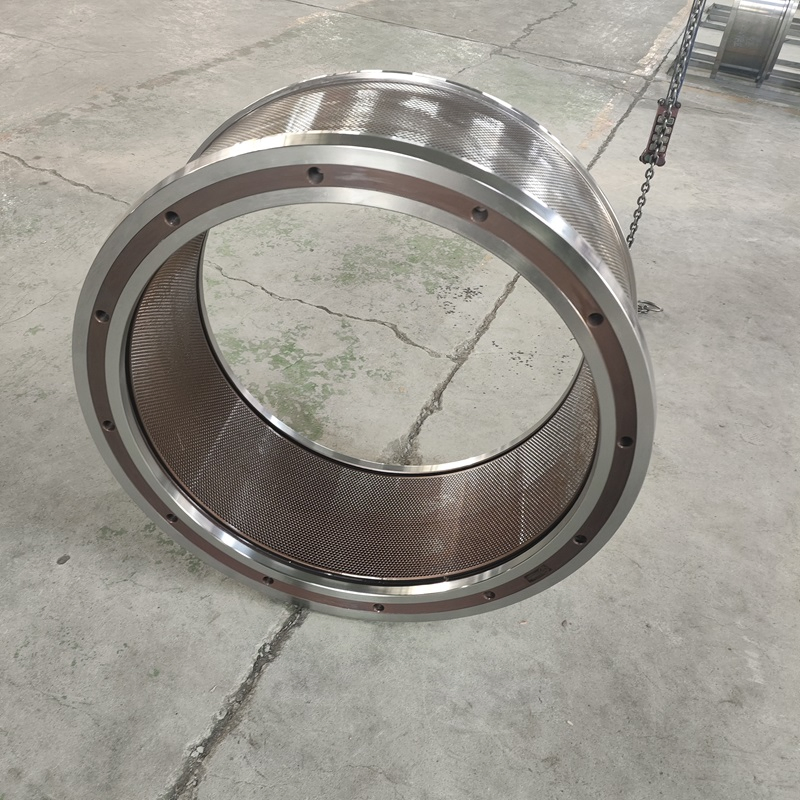

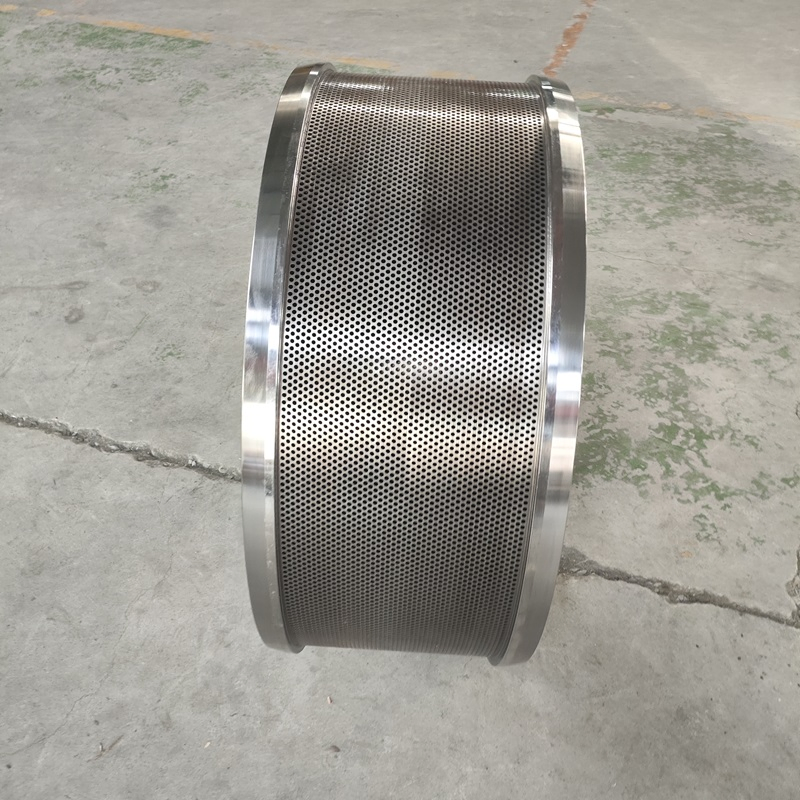

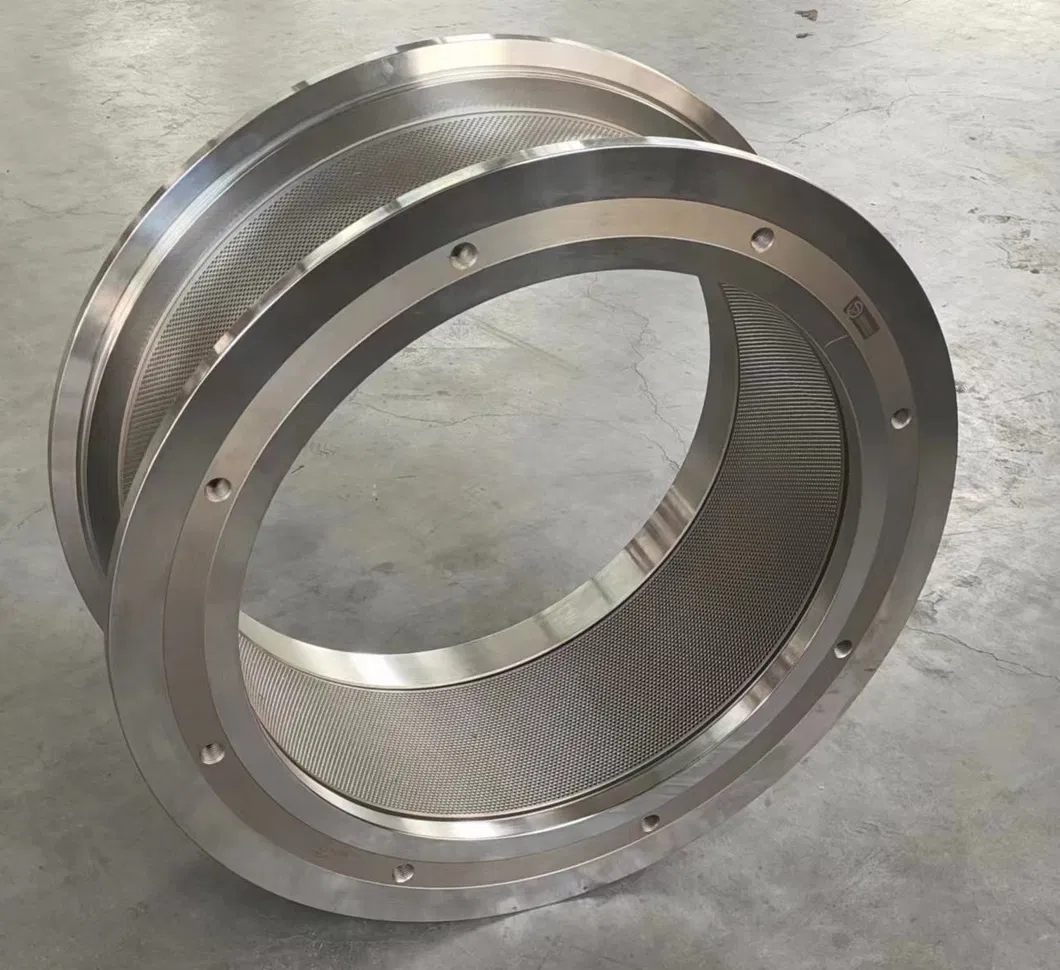

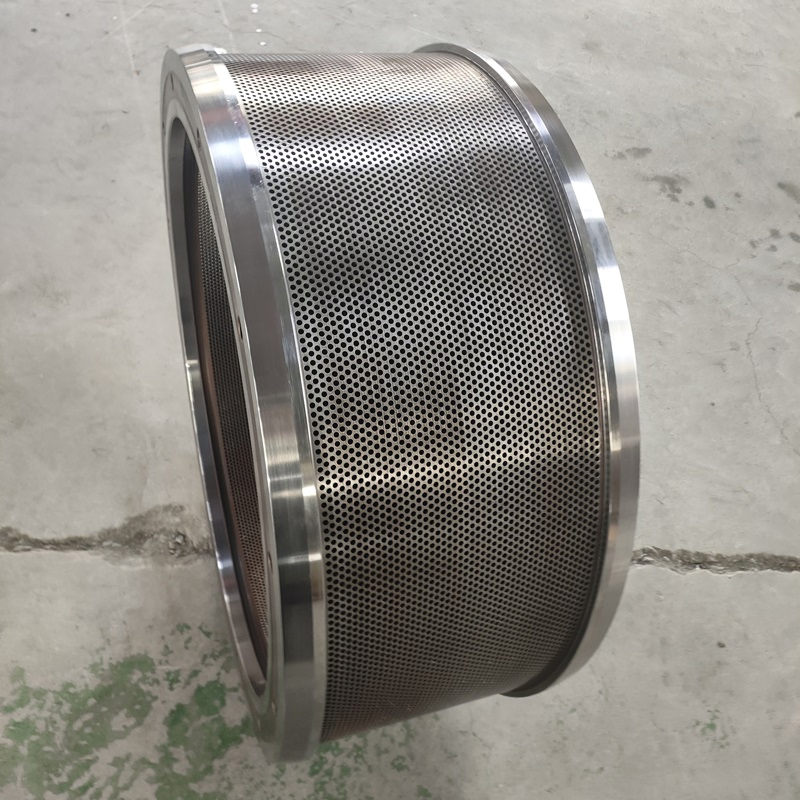

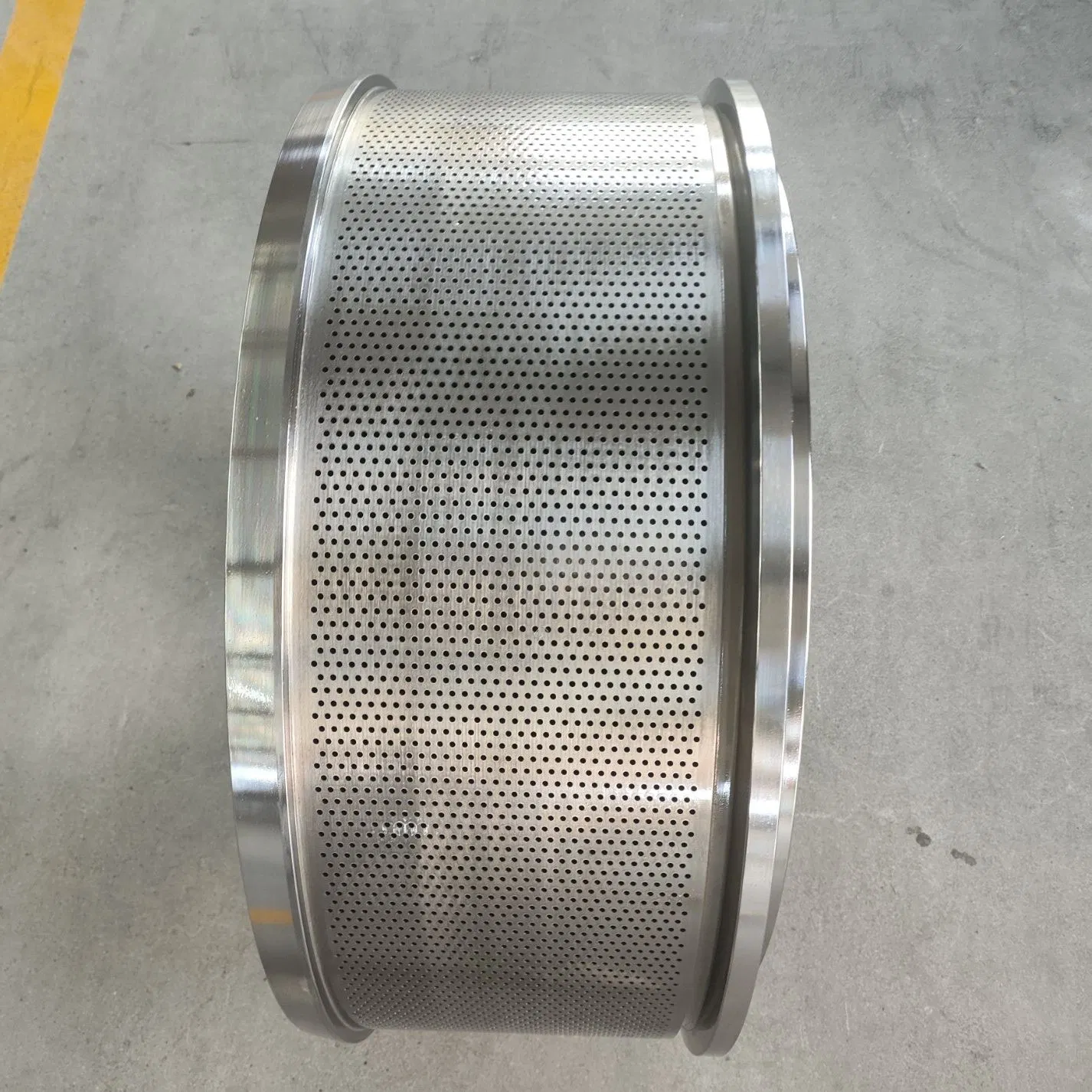

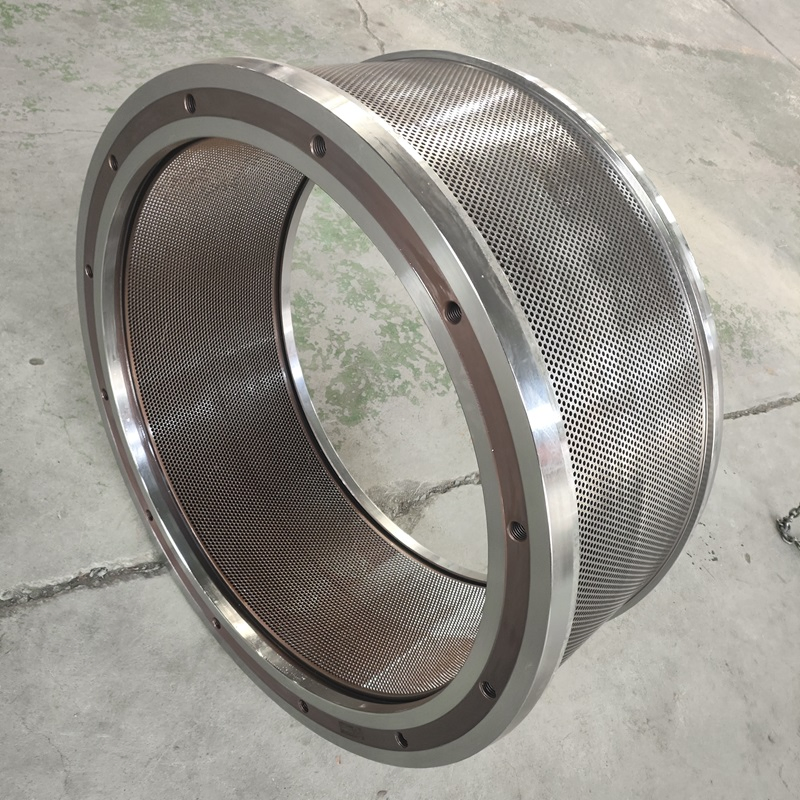

What is a ring die?
Huge ring fittings with porous surfaces are known as "ring die." Ring molds must be assembled with extreme dimensional accuracy due to their thin walls and dense holes. It is one of the most crucial and easily worn pellet mill accessories. To ensure the ring die's resistance to wear and corrosion, high carbon, high chromium steel (4Cr13) and alloy steel are primarily used in its construction.

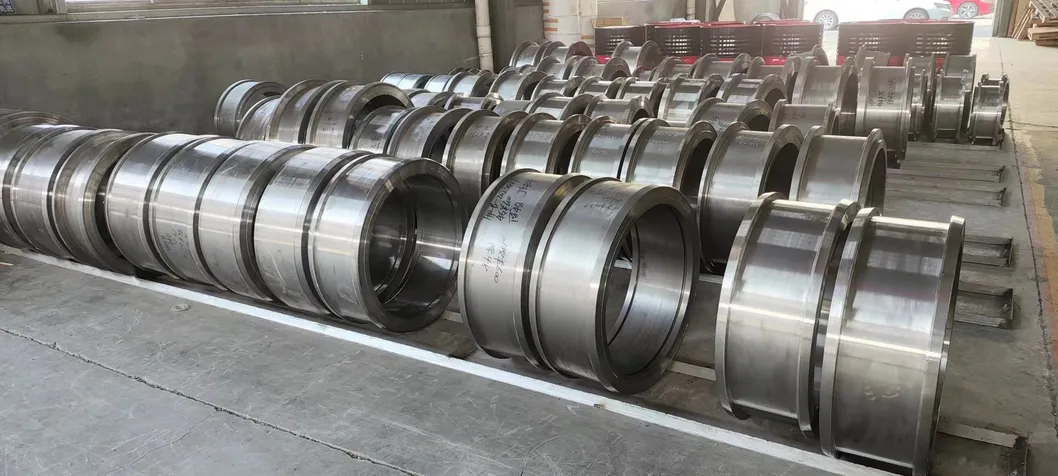

🔬 Raw Material & Forging
Our materials are made using high-quality steel that undergoes a forging process to obtain the desired properties. Through the forging technique, the raw material undergoes a controlled heating and shaping process, resulting in materials with enhanced strength, durability, and structural integrity.
📊 Technical Specifications
We provide ring dies for all major granulator brands including ANDRITZ, CPM, FAMSUN, Buhler, IDAH, and more. Custom designs are available based on specific requirements.
| Specification Type |
Hole Diameter (mm) |
Working Width (mm) |
Designed Output |
| IDAH 530F | 0.8 | 193 | 1.0t-1.5t/h |
| FAMSUN 600 | 0.8 | 170 | 0.8-1.2t/h |
| ANDRITZ 520 | 0.8 | 178 | 0.8-1.2t/h |
| IDAH 530F | 1.0 | 193 | 2.5t-3.9t/h |
| FAMSUN 600 | 1.0 | 170 | 2.2t-3.5t/h |
| ANDRITZ 520 | 1.0 | 178 | 2.2t-3.5t/h |

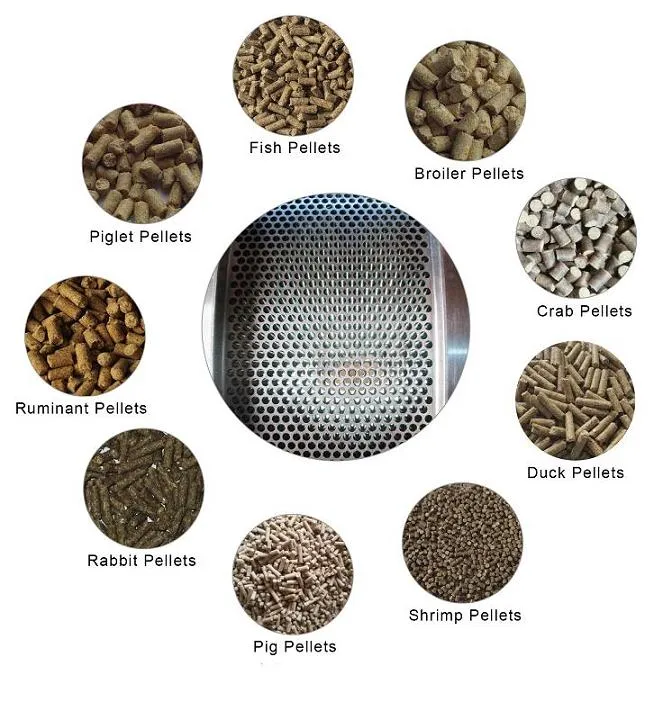

| Feed Varieties |
Hole Diameter |
Compression Ratio |
| Poultry & Livestock | Φ2.0-Φ4.5 | 1:9-1:20 |
| Shrimp Feed | Φ0.8-Φ2.0 | 1:20-1:35 |
| Fish Feed | Φ1.5-Φ5.0 | 1:10-1:25 |
| Biomass & Fertilizer | Φ5.0-Φ18.0 | 1:4-1:10 |
| Cattle & Sheep Feed | Φ4.5-Φ10.0 | 1:6-1:12 |
⭐ Core Advantages
- Superior finish of ring die mill hole surface with homogeneous distribution.
- Short running-in time, allowing maximum production within 2 hours.
- High uniformity, low powder content, and no material dumping.
- Extended service life significantly higher than peer levels.
- Energy saving with stable current and low power consumption.
🏭 Manufacturing & Quality Control

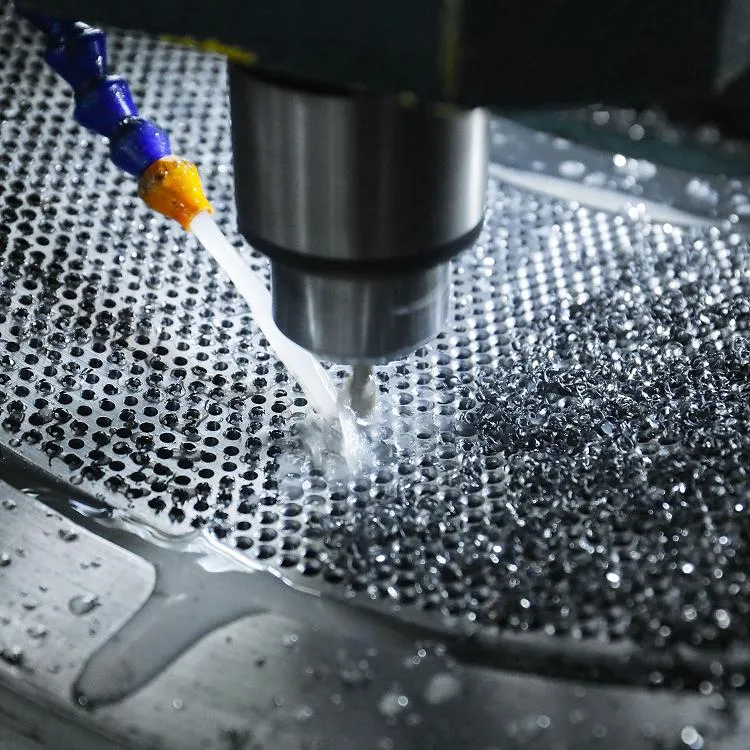

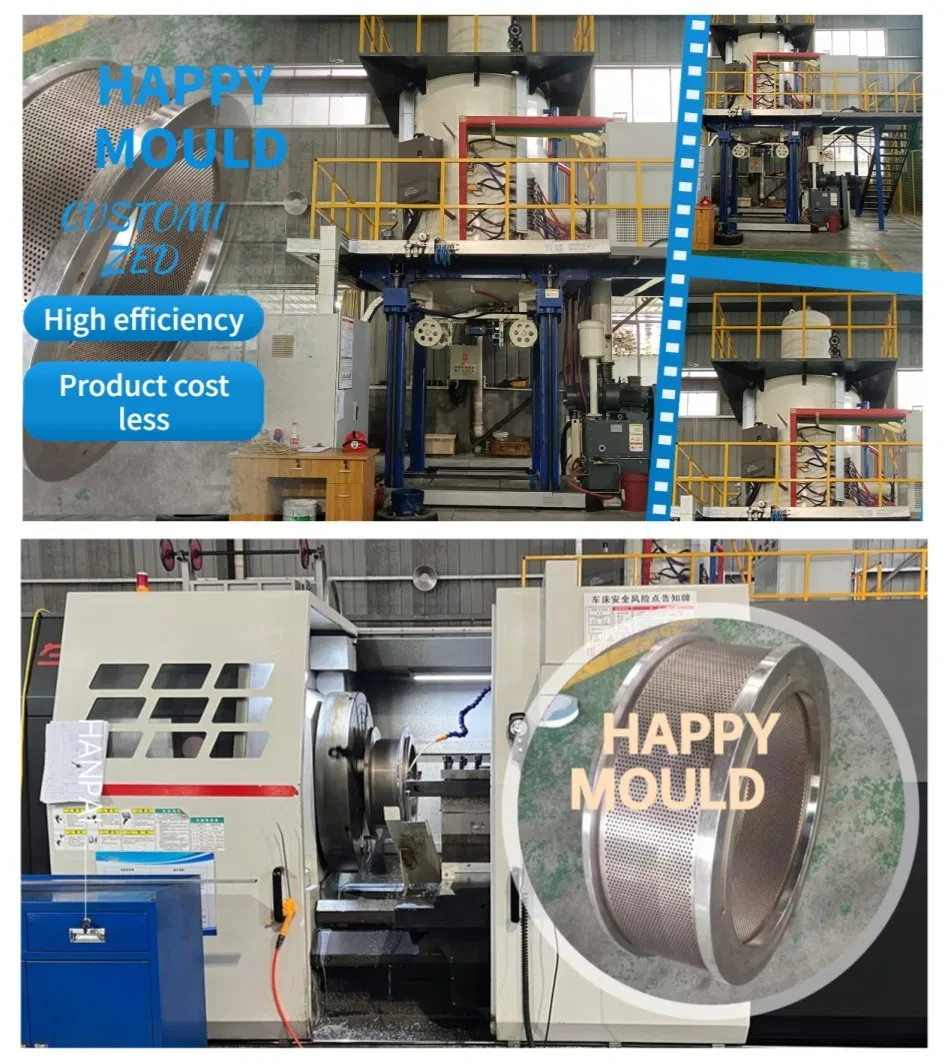

Utilizing CNC deep hole drilling machines, vacuum quenching furnaces, and high-quality steel, our process effectively solves production efficiency and particle quality issues. Our technology ensures even particle length and reduces production costs.
❓ Frequently Asked Questions
How long is the production cycle for the ring die?
As a specialized manufacturer, our production cycle typically ranges between 30 to 60 days.
What is the expected service life of the ring die?
Our ring dies are designed for durability, with an average service life exceeding 1000 hours.
What materials are used in manufacturing?
We use high-grade stainless steel that meets European standards to ensure optimal performance and corrosion resistance.
Which global markets do you serve?
We have established strong business relationships with customers in South Africa, Vietnam, Korea, Indonesia, New Zealand, India, and other regions.
What information is needed for a custom order?
Please provide the brand and model of your pelletizer, along with the required aperture and compression ratio for precise production.
Where is your logistics hub located?
Our facility is strategically located only 200 kilometers from Shanghai Port, ensuring efficient international shipping.
